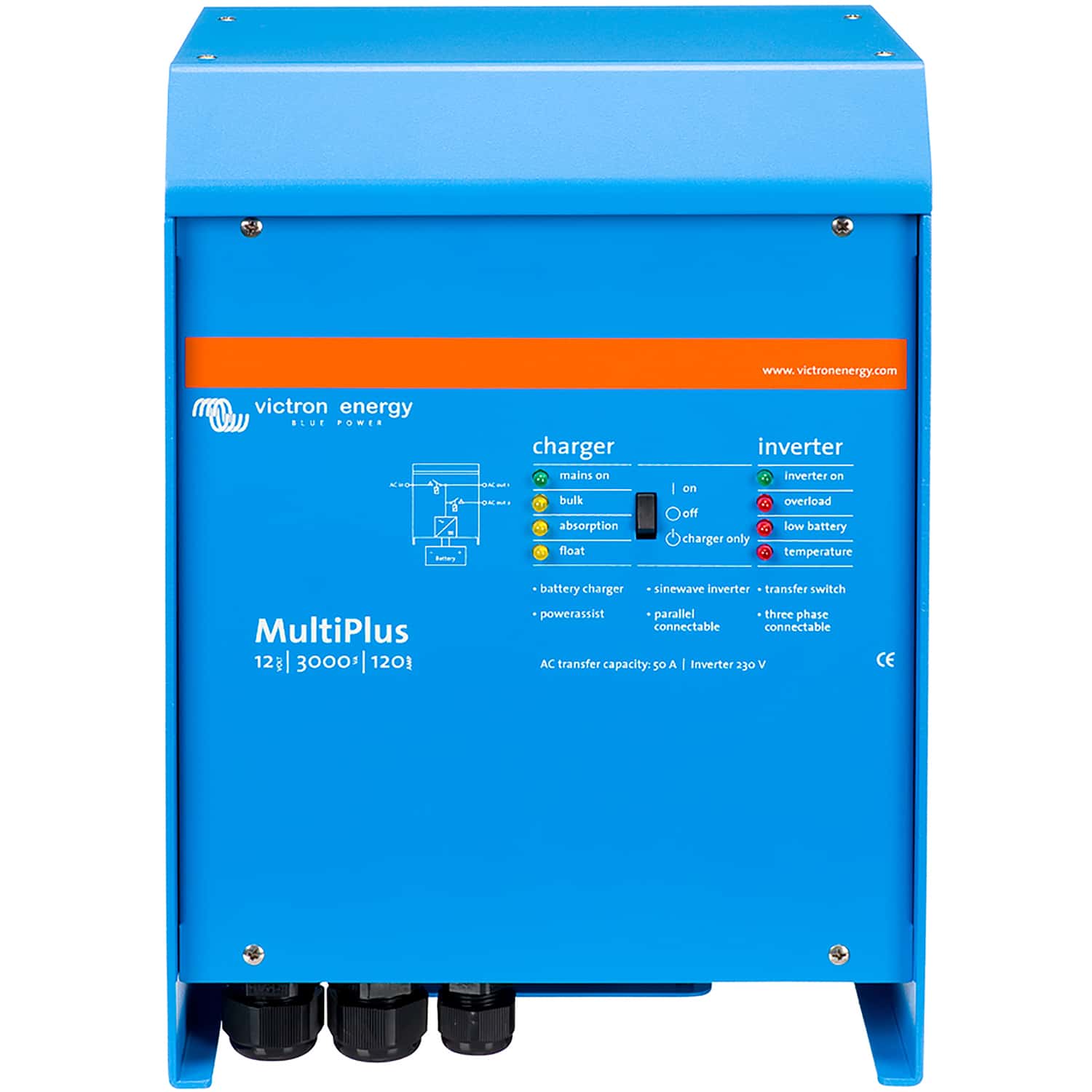

Victron Multiplus inverter/chargers 12/3000W/120A (CSA, UL)

  • Pure sine wave technology
  • Two outputs: uninterruptible power output and power output
  • Three-phase power supply possible (3 units are required)
  • PowerControl function: setting of absorption currents
  • PowerAssist function: absorption of power peaks
  • Power supply with solar energy possible
  • Configure system settings
  • 4-stage adaptive load
  • Charge Adaptation
  • Sleep mode: Reduces maintenance and aging if the battery is not being used
  • BatterySafe function
  • Improved battery life
  • Download Product Specifications
  • UL 1741 and CSA C22.2 Certificate
  • Multiplus Inverters




The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and moreMultiplus 3000W 12V Inverter with built-in 120A Charger (UL CERTIFIED)


Additional information

Weight 45 lbs
Dimensions 27 × 14 × 20 in
